Nicla Vision
Descripción

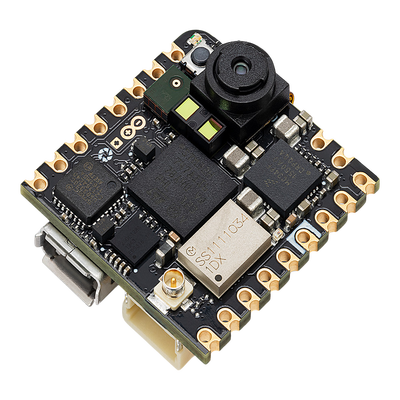

The Arduino® Nicla Vision is a powerful microcontroller equipped with 2MP color camera in a tiny form factor. With WiFi and BLE connectivity, the board maximizes compatibility with professional and consumer equipment. The board features an integrated microphone, distance sensor, smart 6-axis motion sensor and MicroPython support. The Nicla Vision can also be battery powered making it standalone.
Nicla Form Factor
The Arduino Nicla Vision is our smallest form factor yet.
LSM6DSOXTR 6-axis IMU
This 6-axis IMU allows to obtain 3D gyroscopic and 3D accelerometer data. It is also possible to do machine learning on the IMU for gesture detection, offloading computation load from the main processor.
STM32H747AII6
The Nicla Vision features an STM32H747AII6 Dual ARM® Cortex® - M7 core up to 480 MHz + M4 core up to 240 MHz.
2MP color camera
The board uses the GC2145, a 2MP color camera.
Omnidirectional microphone
The MP34DT06JTR digital MEMS microphone is omnidirectional and operate via a capacitive sensing element with a high signal to noise ratio.
