  3. Cloud Router Switch CRS125-24G-1S-RM 24 Puertos Gigabit Ethernet y 1 Puerto SFP
-

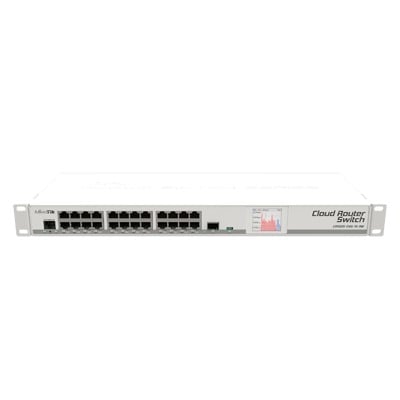

Cloud Router Switch CRS125-24G-1S-RM 24 Puertos Gigabit Ethernet y 1 Puerto SFP

Cloud Router Switch CRS125-24G-1S-RM 24 Puertos Gigabit Ethernet y 1 Puerto SFP

http://novusred.lytics.mx/web/image/product.template/104738/image_1920?unique=a1e619f

$ 4,532.69 4532.69 MXN $ 4,532.69

$ 5,257.92

No está disponible para venta

Esta combinación no existe.

Contáctenos

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Compartir

Código de productoCRS125-24G-1S-RM
SFP DDMISí
CPU frecuencia nominal600 MHz
CPU número de núcleos1
ArquitecturaMIPS-BE
Tamaño de RAM128 MB
Puertos Ethernet 10/100/100024
Número de puertos USB1
Conector de alimentación1
PoESí
voltaje de entrada el apoyo8 V - 28 V
monitor de VoltajeSí
vigilancia de la temperatura de PCBSí
Dimensiones443x142x44mm
Sistema operativoRouterOS
Rango de temperatura de funcionamiento-35C A + 65C a prueba
nivel de licencia5
UPCAR9344
Consumo máximo de energía15W
Los puertos SFP1
Tipo de ranura USBmicroUSB tipo AB
Puerto serialRJ45
tipo de almacenamientoNAND
El tamaño de almacenamiento128 MB

Switching results

CRS125-24G-1S-RM
ModeConfiguration64 byte512 byte1518 byte
kppsMbpskppsMbpskppsMbps
SwitchingNon blocking Layer 2 throughput37,202.419,047.65,874.124,060.22,031.924,674.9
SwitchingNon blocking Layer 2 capacity37,202.438,095.25,874.148,120.32,031.949,349.8
SwitchingNon blocking Layer 1 throughput37,202.425,000.05,874.125,000.02,031.925,000.0
SwitchingNon blocking Layer 1 capacity37,202.450,000.05,874.150,000.02,031.950,000.0

Ethernet test results

CRS125-24G-1S-RMAR9344 1G all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
Bridging25 bridge filter rules81.0983.786.0352.387.644.9
Routingnone (fast path)81.0983.7210.0860.2226.9116.2
Routing25 simple queues81.0983.7103.9425.6106.654.6
Routing25 ip filter rules56.8689.859.6244.160.531.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
