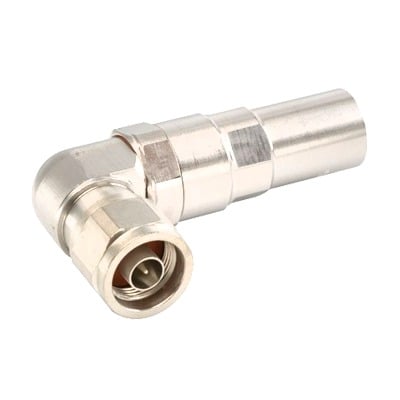

General Specifications
Interface N Male
Body Style Right angle
Brand HELIAX® | Positive Stop™
Mounting Angle Right angle
Ordering Note CommScope® standard product (Global)
Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 8800 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical 116 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 707.00 V
dc Test Voltage 2000 V
Outer Contact Resistance, maximum 0.30 mOhm
Inner Contact Resistance, maximum 2.00 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 0.6 kW @ 900 MHz
Peak Power, maximum 10.00 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness 110 dB
